SOT-MRAM is a next-generation non-volatile memory technology that offers high speed, low power consumption, and high endurance. This article provides a detailed explanation of its basic principles, differences from other memory technologies, the latest research and development trends, and the challenges and prospects for commercialization.
What Is SOT-MRAM? Basic Principles and Features
Structure and Operating Principle of SOT-MRAM
SOT-MRAM (Spin-Orbit Torque MRAM) is a non-volatile memory technology that controls the direction of magnetization using spin-orbit torque. Its basic structure consists of a magnetic tunnel junction (MTJ) and a spin injection layer. Data is read by utilizing the difference in tunnel resistance of the MTJ, while data is written using spin-orbit torque generated by an electric current. Unlike conventional STT-MRAM, SOT-MRAM separates the read and write paths, resulting in superior endurance and durability. It also enables high-speed operation and contributes to reduced operating energy, making it a promising candidate for next-generation cache memory and embedded applications.

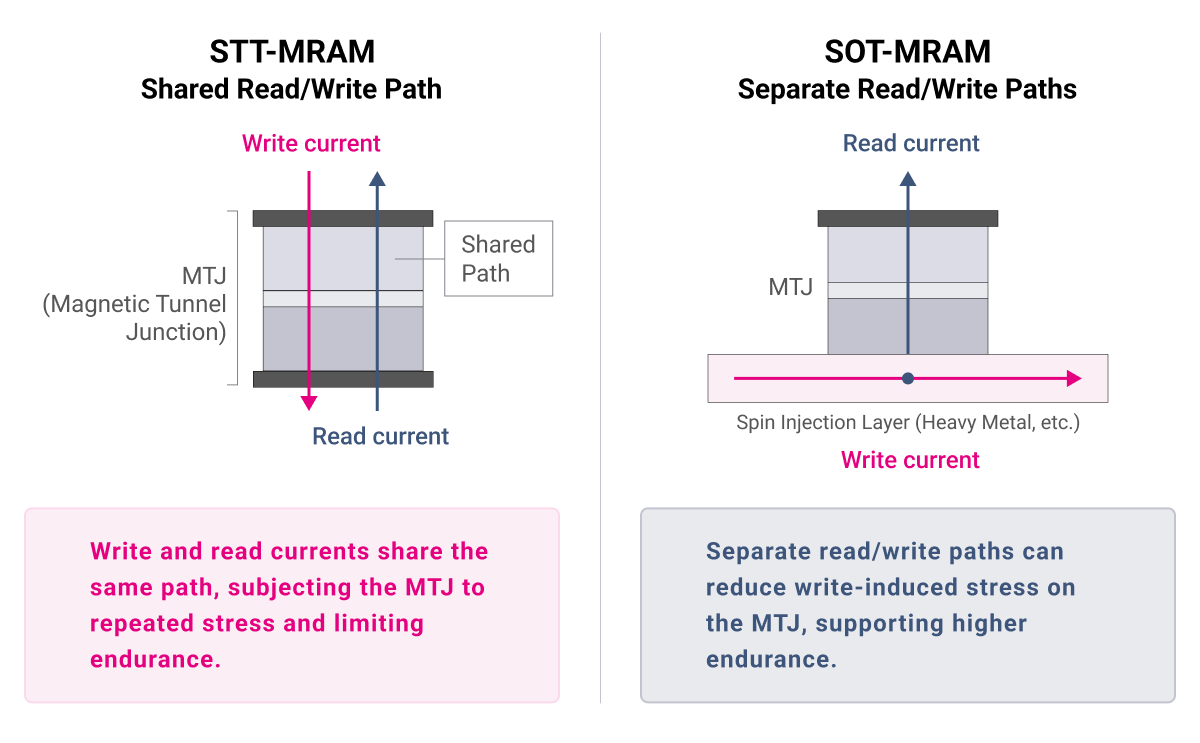

Comparison with Other MRAM Technologies
SOT-MRAM is most commonly compared with STT-MRAM (Spin Transfer Torque MRAM). Because STT-MRAM uses the same MTJ structure during writing, the read and write paths overlap, increasing the risk of tunnel barrier degradation and cell damage. In contrast, SOT-MRAM uses a separate write path, which reduces direct stress on the MTJ and provides higher reliability. SOT-MRAM also supports sub-nanosecond write speeds, giving it an advantage over STT-MRAM in terms of performance and making it suitable for next-generation cache applications. However, SOT-MRAM currently requires additional layers and new materials, which remains a challenge from a manufacturing cost perspective.
Advantages and Application Areas of SOT-MRAM

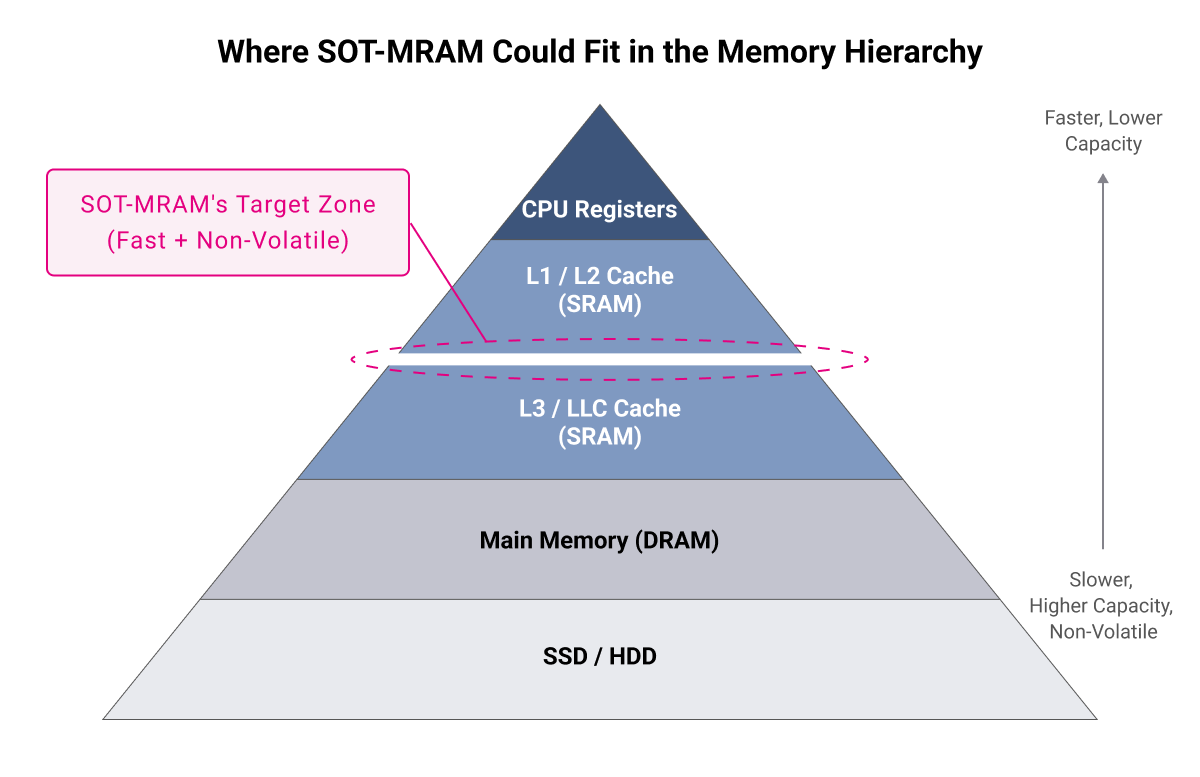

SOT-MRAM is expected to be used across a wide range of applications due to its low power consumption, high-speed operation, and excellent write endurance. In particular, it is being considered for use in cache memory, IoT devices, and automotive equipment, where power efficiency and reliability are critical. It is also regarded as a strong candidate for replacing volatile memories such as SRAM and DRAM, as well as for systems requiring secure data retention. Furthermore, aside from its relatively high operating current density, SOT-MRAM offers excellent scalability, and many companies and research organizations are actively developing it as a scalable next-generation memory technology.
Latest Research and Development Trends
Research Achievements Using Topological Insulators
In recent years, research into SOT-MRAM utilizing topological insulators has attracted significant attention. A topological insulator is a material whose interior behaves as an insulator while its surface can conduct electricity, enabling highly efficient spin current generation. This makes it possible to achieve magnetization switching with less current than conventional approaches and is expected to significantly improve the energy efficiency of SOT-MRAM. Research institutions such as Tokyo Institute of Technology and JST have successfully demonstrated new device structures that combine these materials with MTJs, representing a major step toward practical implementation. These achievements can be considered technological breakthroughs for realizing next-generation low-power memory.
Introduction of New Materials and Performance Improvements
To improve the performance of SOT-MRAM, heavy metal materials such as tungsten, platinum, and hafnium, as well as new materials utilizing the spin Hall effect, are being introduced. These materials exhibit strong spin-orbit interactions, enabling more efficient spin current generation. Research is also being conducted on controlling magnetic anisotropy and optimizing interface design to achieve high-speed operation while reducing switching current. Research organizations including imec and AIST have announced highly integrated, low-power SOT-MRAM prototypes using these new materials, and further developments are highly anticipated. Advances in materials technology are a key factor in pushing the performance limits of SOT-MRAM.
Initiatives by Research Institutions in Japan and Worldwide
Research and development of SOT-MRAM is being actively pursued by numerous institutions worldwide. In Japan, organizations such as Tokyo Institute of Technology, AIST, and Tohoku University are conducting advanced research with unique approaches involving topological insulators and nanoscale structure control receiving considerable attention. Meanwhile, global institutions such as imec in Belgium, KAIST in South Korea, and IBM Research in the United States, are playing leading roles. imec has successfully demonstrated SOT-MRAM fabrication on 300 mm wafers, marking significant progress toward mass production. Through both international competition and collaboration, SOT-MRAM technology is evolving rapidly, increasing expectations for future commercialization.
Challenges and Solutions for Commercialization
Reducing Write Current and Increasing Speed
One of the major technical challenges in commercializing SOT-MRAM is the relatively high write current required. Current SOT-MRAM devices can achieve high-speed switching, but they generally require a comparatively large current to generate sufficient spin current. This can lead to increased power consumption and thermal issues. Potential solutions include the adoption of materials with high spin conversion efficiency and design techniques that optimize spin current propagation paths. In particular, new structures incorporating topological insulators and heavy metals are promising approaches for achieving magnetization switching at lower current levels. As a result, the commercialization of SOT-MRAM that combines high speed with low power consumption is becoming increasingly realistic.
Improving Magnetic Robustness and Reliability
Data retention performance and long-term reliability are also important considerations for SOT-MRAM implementation. Specifically, materials and structural designs are required that can withstand magnetic noise and maintain performance even after billions of write cycles. Current efforts focus on maintaining MTJ stability while minimizing the influence of external magnetic fields. One approach involves the use of materials exhibiting perpendicular magnetic anisotropy (PMA). Furthermore, because spin-orbit torque writing does not directly affect the MTJ, SOT-MRAM is expected to offer higher reliability than STT-MRAM. Further validation under high-temperature and high-impact conditions required for industrial applications is expected to bring the technology closer to practical deployment.
Manufacturing Process and Integration Challenges
One challenge for the mass production of SOT-MRAM is compatibility with existing semiconductor manufacturing lines. This is even more evident as advanced nanofabrication technologies and novel material deposition processes are required to deposit spin injection layers and tunnel barrier layers with high precision while consistently forming fine structures. In addition, because SOT-MRAM tends to have a more complex structure than STT-MRAM, the increased number of layers can affect integration density and manufacturing costs. To address these issues, research institutions such as imec are developing technologies for 300 mm wafer processing and CMOS-compatible manufacturing processes, gradually establishing the technologies needed for practical implementation. Going forward, both design and manufacturing optimization must progress simultaneously.
Conclusion
Future Potential and Outlook for SOT-MRAM
SOT-MRAM is being rapidly developed as a next-generation non-volatile memory technology with the potential to overcome the limitations of conventional STT-MRAM. Its high-speed operation, long endurance, and high reliability resulting from separate read and write paths make it a promising technology for future applications in IoT devices, automobiles, smartphones, and data centers. In particular, prospects are expanding for replacing volatile memory and enabling new architectures through the integration of logic and memory. With continued advances in materials research and manufacturing technologies, commercialization is increasingly viewed as a matter of time, and SOT-MRAM has strong potential to become a mainstream memory technology in the future.
Directions for Research and Development
Current SOT-MRAM research and development efforts are focused on three main directions. First is materials innovation aimed at reducing switching current, including the introduction of topological insulators and heavy metals with high spin Hall angles. Second is the realization of high-speed and stable write operations through structural optimization, including improvements to MTJ structures and interface design. Third is the establishment of manufacturing processes and ensuring CMOS compatibility. By addressing these challenges, SOT-MRAM is expected to establish itself as a major memory technology alongside flash memory, SRAM, and DRAM. Continued collaboration between industry and academia is expected to drive further progress.
Steps Toward Commercialization
Commercialization of SOT-MRAM requires several step-by-step developments. First, materials and structures must be optimized to achieve spin-orbit torque-driven magnetization switching with lower energy consumption. Next, manufacturing technologies must be adapted for mass production while reducing costs. In particular, establishing processes compatible with existing semiconductor manufacturing equipment will be a key factor for commercial deployment. In addition, ensuring quality through reliability evaluation and establishing product specifications that comply with international standards will be necessary. By addressing these requirements one by one, SOT-MRAM will be positioned for full-scale market adoption and become a driving force in the next-generation memory market.
